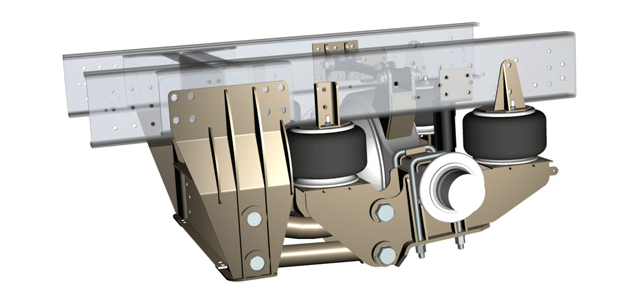

RAD-227 Air Ride Suspension


Drive Axle Suspension

Parallelogram arrangement stabilizes hinged axle and axle seat.

High capacity suspension available in either a hinged bracket axle mount or a U-bolt axle mount.

38,000  – 48,000 lb. capacity for Hinged bracket axle mount

58,000 lb. capacity for U-bolt axle mount


• Parallelogram independent axle movement for high articulation and improved traction
• Simple, manual axle alignment through patented eccentric bolts
• All lube free, rubber-bushed pivots
•Center mount arrangement to fit in limited space

Agriculture, Construction and Utility, Fire and Rescue, Heavy Haul
